STOW.
Active Learning: Design for India Collab
Tutor: Jaymin Panchasara
<
Pictures from Visiting Various Schools - MGIS
>
<
Pictures from Visiting Various Schools - Riverside
>
<
Some Initial Sketches
>
Ideal Makerspace - Ambiguous Use
<
Concept Development
>
850 + 90
1130 + 90
Elevation of the Two Sizes
Open
Totes
Drawers
Doors
Files
Papers

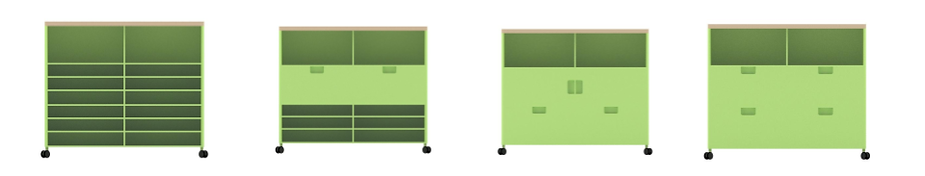

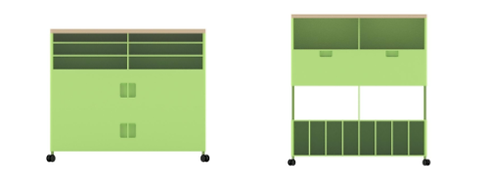

Iterations
Docking of Two Units
The height of the storage along with the castors might not be ideal and needs to be
smaller.
The open compartments are a problem because when the storage is moved around, the things inside these open compartments will fall.
The handle, although agreeing with the
design language with the product might not be very functional, especially for kids.
The overall weight of the storage needs to
be reduced if it has to be easily moved by
the students around the classroom.
Key Considerations
A mobile storage solution for makerspaces in active learning schools that follows students throughout their activities, allowing them to securely store materials and projects while enabling easy movement and seamless integration into the dynamic, hands-on environment.
The Detail of the Drawer Handle
The Handle of the Entire Storage
The Lockable Castors of the Storage
The Stow Storage
Elevations of the Two Stow Storage Options
Top View - i
Top View - ii
Elevation - i
Elevation - ii
Dimensions of the Two Sizes of the Storage
#7B7B7B
#67B1BE
#AC957B
CMF Options: Other Finish Options of the Storage
<
Scaled Models (1:6 Final Scaled Model and 1:4 of the Previous Iteration)
>
Top Tray
(MS Powder Coated)
Handle
(MS Powder Coated)
Smaller Drawer
(ABS Injection Molded)
Larger Drawer
(ABS Injection Molded)
Outer Shell
(ABS Injection Molded)
Lockable Castors
Exploded View of the Storage
